Parabolic Mirrors

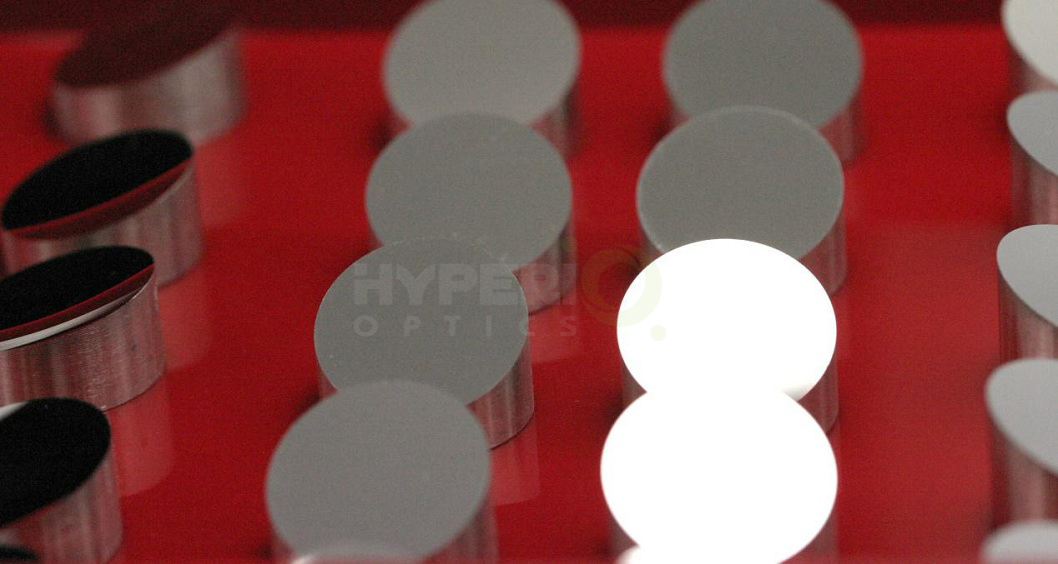

Parabolic reflectors are used to collect energy from a distant source (for example sound waves or incoming star light). Since the principles of reflection are reversible, parabolic reflectors can also be used to focus radiation from an isotropic source into a narrow beam. In optics, parabolic mirrors are used to gather light in reflecting telescopes and solar furnaces, and project a beam of light in flashlights, searchlights, stage spotlights, and car headlights. In radio, parabolic antennas are used to radiate a narrow beam of radio waves for point-to-point communications in satellite dishes and microwave relay stations, and to locate aircraft, ships, and vehicles in radar sets. In acoustics, parabolic microphones are used to record faraway sounds such as bird calls, in sports reporting, and to eavesdrop on private conversations in espionage and law enforcement.



Parabolic mirror are typically designed as a segment of a larger parabola, manufactured from a metal substrate such as aluminum and coated in enhanced aluminum, silver or gold as standard. These mirrors focus light similar to a concave mirror with the significant exception being that the off-axis parabolic design redirects the incident light through 90%.



Custom mirrors may be manufactured in a range of substrates and alternative coatings as required by our customer's specifications including UV and IR coatings and materials and alternative reflection angles.



Hyperion Optics is a leading optics supplier, we provide parabolic mirror design, parabolic reflectors for sale, parabolic mirror for sale, optical design manufacturing and etc. Want to buy parabolic mirror or know more? Please contact us.

IR Asphere Lenses

Hyperion Optics works with various infrared materials. In recent years, we have seen a growing demand of IR aspheric components due to their ability to reduce the number of elements within the system while maintaining reliable performance; this makes aspherical parts an excellent choice in Low Rate Initial Production (LRIP) projects. Our aspheric manufacturing capability covers from 0.8 micron upwards to 12 micron for IR application, from a combination of materials needed in order to reach the required application needs.



Equipped with Ametek Single-Point Diamond Turning machine, Hyperion Optics is capable of processing the following infrared and UV materials for aspheric components:



Zinc Sulfide (CVD CLEARTRAN available), Zinc Selenide, Germanium, Chalcogenide glasses (available in both Schott and NHG IRG materials), Calcium fluoride, and Silicon.



Please contact our experienced engineers for performance consultation and print assessment.



MOQ starts at two pieces to ensure optical performance approval. Our fast asphere prototyping has become one of our most popular services for Low Ratio Initial Production (LRIP) projects. We can process both spherical and aspherical parts simultaneously for custom objective and/or eyepiece designs, thereby securing reliable timeline management to meet the tight timing requirement. In addition, we offer competitive pricing for aspheric coating within our prototyping packages.



Our rapid aspheric prototyping / LRIP service in SWIR MWIR and LWIR include:



1. Built to print, Hyperion Optics fabricates aspheric lens and provides inspection report by your print.



2. There is a lack of Chalcogenide materials integration in optical designs for IR applications, which is a big missed opportunity. At Hyperion Optics, the combination of Chalcogenide glasses and regular IR materials can provide a cost-effective solution with superior optical performance.



3. Hyperion Optics runs in-depth mapping and optical performance tests on component-level and/or lens system level products; and provides redesign, optimization, manufacturing, and assembly services.



4. For SWIR prototyping projects, we adopt injection molding processing for Schott and Ohara glasses at prototyping quantities, which can avoid purchasing high-cost raw materials from overseas, and hence dramatically reduces material investment at the prototyping phase.

Manufacturing Limits for Aspheric Surfaces For IR Materials Based on Form Error Tolerance
Form Error 0.5 – 2μm Higher Resolution Profilometry (2-D)1
Attribute	Minimum	Maximum
Diameter (mm)3	3	80
Local Radius (mm)	-12 (Concave)	∞
Sag (mm)	0	252
Departure (mm)	0.01	20
Included Angle (°)	0	150
Form Error < 0.5μm Interferometry with Stitching (3-D)
Attribute	Minimum	Maximum
Diameter (mm)3	3	80
Local Radius (mm)	-13 (Concave)	∞
Sag (mm)	0	252,4
Departure (mm)	0.002	1
5. Included Angle (°)	6. 0	7. 120+5

Talk to one of our optical engineers to understand how Hyperion Optics can work with you for your developing IR application today.



Hyperion Optics is a leading optics supplier, we provide infrared camera lens, hyp design and etc. Want to know more? Please contact us.

Rapid Prototyping

LRIP Rapid Prototyping



Hyperion Optics has leading advantages in rapid prototyping services for LRIP (Low-Rate Initial Production) and Proof-of-Concept projects.



Various fast material accesses, such as Schott, Ohara and CDGM. We also offer mold pressed substrates for optics prototyping at competitive pricing

More than 6,000+ test plate, which can dramatically shorten the overall lead time to delivery

Specialized prototyping production team to oversee project from procurement to delivery

Excellent internal resources aiming at 4-week delivery from grinding, polishing, to coating

Free initial prototype design consultation



We encourage you to communicate with us before finalizing your optical design. Our dedicated prototyping team will verify the material availability, material lead time, optimal solution of substrates selection and fabrication tolerance definition prior to production. We always strive to provide the most pragmatic suggestions to avoid unnecessary extended delivery.



Raw Material Preparation Pressing vs. Slicing (Prototyping Qty)



Occasionally, optical designers may encounter prototyping challenges where there are multiple spherical elements from over 5 different glass suppliers in a 5-10 lens set design. In most cases, the project faces budget challenges with the spread across various materials due to limited material availability in the right blank sizes.



Unlike most Chinese vendors, Hyperion Optics has full access to Schott and Ohara glasses. Please see our glass inventory for your reference. Furthermore, all glasses listed are in pre-annealed sheet form. The pressed substrates solution has a +/-0.00002 precision refractive index tolerance after fine-annealing; typical lead time is 2 weeks from the receipt of the order.



Our engineers conduct cost-analysis for any project scale, and advise whether manufacturing from a glass strip or molded substrates would be the most cost-effective approach. We have the direct support from domestic glass molding vendors who strategically offer low MOQ molding services with the most reliable annealing technology. Our prototyping approach can ensure that your precious project budget is money well-spent.



Flexible Manufacturing Planning



Hyperion is equipped with advanced manufacturing devices and technologies, which offers unique advantages for LRIP projects by leveraging our internal resources.





1. Exhaustive Test Plates Inventory. Hyperion stores over 6,000+ test plates. Our vast inventory means that if our test plate stock radius data matches your design, there would be no added cost to the test plate, and the relative lead time can be shortened.



2. High Surface Accuracy by Conventional Processing. Our polishing operators have nearly 20 years of optics fabrication experience; we regularly deliver high-precision elements with 1/8-1/10 lambda surface flatness.



3. SPDT Aspherical Capability. Our aspherical machining and polishing techniques ensure that you don’t need to procure aspherical parts elsewhere.



4. Quick and Convenient Coating Bundle. For common coating specs in the Visible wavelength range, LRIP projects can be arranged along with our regular daily coating operation and reduces the overall coating cost.



Discuss with our sales engineers to explore how Hyperion can make your procurement easier and faster. Read more on our production capabilities next: Optical Components + Lens Assembly.



For more information about optical design manufacturing, please feel free to contact us!

Opto-Mechanical Design

In precision optical systems, the slightest deficiency in opto mechanical systems design will impair the performance of the most sophisticated optical components. When customizing optics, many clients neglect the impact of opto-mechanical systems design shortcomings to the overall system. Hyperion’s design and optimization services can help prevent prototyping/ design pitfalls.



First and foremost, our engineering team seeks to fully understand your optical goals and the system performance requirements. Before proposing a mechanical structural design, our team will gain in-depth insights about your application needs through a series of technical communication. This investment in the preliminary design phase is critical for the efforts in setting the appropriate opto-mechanical design constraints based on the system function. These constraints enable us to convert the precision optical components into a high-performance and reliable optical system.



Hyperion's vigorous work process is designed to result in an optimal solution:



1.Our mechanical team works with you to understand the requirements of the optical parameters in respect to the mechanical system

2. Our optical team works with you to understand the impact of mechanical design on the overall optical system performance



3.Our mechanical and optical engineering teams work collaboratively to:



a.Formulate spacing and centration requirements of complete optical components



b.Determine material specifications



c.Determine packaging requirements (e.g. minimum and maximum size and weight restrictions, environmental standards such as shock, vibration, operating temperature)



d.Perform cost and production yield analysis



e.Finalize production schedule and requirements



4. Verify the design by using SolidWorks to create 3D models and structures



Hyperion also offers proof-of-concept services for individual optical element leveraging systematic engineering methods to ensure that your solution will meet your design expectations. Specifically:



Design review based on custom requirements and specifications

Develop engineering trade-off research and tolerance distribution

Manufacturability evaluation

Measurement design development and test data analysis

Complete engineering report, including all design documents, drawings, engineering analyses, manufacturability evaluation, and measurement recommendations



Prototyping Services for Opto-mechanical Components:



Hyperion offers prototyping for various component materials, including optical glass, plastic, and metal (such as Alunimum, stainless steel, copper, brass).



At the same time, we will also recommend the most suitable metal oxidation process based on your working wavelength. For instance, for NIR or SWIR applications, we propose Micro-arc Oxidation (MAO) blackening instead of conventional anodization blackening (AND). MAO blackening offers the unique advantages where Ravg can be reduced to a minimal level. The below MAO (arc oxidation) and traditional anodization blackening (AND) reflectivity comparison showcases this advantage:

Starting from the near-infrared band, arc oxidation can maintain the low reflectivity of the inner wall of the device, thereby reducing the noise of the entire system and improving the optical performance.Our team conducts various research and R&D on metal surface oxidation to help our customers arrive at the best treatment decision with regards to opto-mechanical components.

Our experience is transferable over a wide variety of commercial applications; we have been continuously helping our customer to build:

Collimators including LED	Image Processing
Microscope Objectives	Video Games and Optical Gadgets
Zoom Lenses	Night Vision
Metrology Systems	IR Systems
Laser Marking Systems	Robotics
Ophthalmoscopes	Motion Capture
Endoscopes	Distance Measurement
Servo Systems	Barcode Readers
Confocal Imaging	3D Displays

Talk to one of our optical engineers today to learn more about how Hyperion can support your opto-mechanical needs.



For more information about optical assembly manufacturing, please feel free to contact us!



Optical Design & Assembly

Hyperion Optics works on over 40+ custom precision assembly projects annually, from prototyping to mass production. Our lens assemblies range from microscope objective lenses, expanders, to SWIR/ MWIR/ LWIR lenses and more. With our reliable optical & mechanical design capabilities, we are confident to achieve challenging assembly jobs.





Our custom optical design cover feasibility research, design specifications verification, preliminary design analysis, and prototyping to volume production.



We are comfortable with LRIP (Low-Ratio Initial Production) and Proof-of-Concept projects, which can be challenging for most optical companies given a low starting quantity. Our typical LRIP projects take about 1-2 weeks for preliminary design development and review, another 4-6 weeks for prototyping and assembly, and finally 1 week for final testing and inspection. Thus, we can help jump start your project and bring your design to life within a short prototyping cycle of 7-8 weeks. Given our experience and expertise in optical design and manufacturing, our design solution is highly DFM (Design for Manufacturability) -driven, thereby guaranteeing to meet actual production yield & feasibility in your go-to-market strategies.



Standard Optical Design Flow Chart



Complementing our design services, Hyperion is a one-stop-shop optics provider with full capabilities of various custom optical components, from singlet lenses to complicated aspherical surfaces across the spectrum. This feature significantly increases the ease for your procurement process. Our own QA standards (ISO:9001 compliant) offers peace of mind to our customers who can count on us for dependable, high-quality delivery.



We are comfortable to fabricate systems involving DOE, aspherical surface with optical glasses such as Schott/ Ohara/ CDGM/ NHG to IR material such as Chalcogenide and ZnS. Please refer to our IR and high precision components manufacturing capability for more details.



In our design process, our common practice includes sharing the most up-to-date glass catalog and refractive index data from CDGM and NHG with our customers. In some cases, we offer actual tested R index through VIS up to 2500 nm per different materials upon request. Our engineers are happy to research on the material feasibility and availability from our resources and databanks.



One unique advantage we offer in optical design is that you get to enjoy the full support from the Hyperion production team as we collaborate on a design project. By combining our optical design expertise with our manufacturing experience, we can perform manufacturing tolerance & cost analyses, feasibility testing, and specification definition with a much greater degree of accuracy. To-date, we have accumulated a portfolio of design cases whereby Hyperion helped create cost effective systems with optimal performance (without over-spec on the components), while securing a successful prototype in the first run.



Hyperion Optics manufactures and assembles the components required in your optical system, enabling you to achieve your goals in fewer and more efficient steps. Our optical design and manufacturing teams constantly evaluate to arrive at the most cost-effective solution via creative thinking and optimization. With our comprehensive metrology in-house, Hyperion’s one-stop-shop process can help guarantee precision outcomes & application performance. We are dedicated to offering you top-quality lens assembly at an optimal budget.



We serve clients who need a comprehensive service from design, optical engineering, to manufacturing & assembly. Our team of 15 optical and mechanical engineers conducts diligent research and study of the end application to insure that our final solution will work seamlessly in your system. Further design adjustment and optimization is also applicable based on actual usage and testing.



Hyperion's Premium Optical Design Package Offers:



Free Design Consultation: We offer free preliminary design and design review for your concept feasibility study, including MTF simulation and pragmatic suggestions.

Material Recommendation: With over one decade of working experience with major glass vendors, we always come up with the most cost-effective and reliable material mix for your lens assembly solution.

Parameters Analyses (upon special request):You have the best understanding of your system and application requirements. We happily provide additional simulations and analyses based on our customers’ interests during the design stage.

Strict Quality Control: Hyperion assigns a special project-based QA team exclusively for custom lens design projects, which consists of the top inspectors and qualified engineers to oversee prototyping, assembly, all the way up till final inspection. This team is co-led directly by the Head of Engineering and the Head of QA.

Custom Inspection Requirement:We understand that each lens assembly has its own unique acceptance criteria. Hyperion Optics actively works with the customer to develop the most suitable inspection methods and invest in necessary procedures based on our current metrology setup.

Please browse our featured lens assemblies category to learn about what projects we can help you with. If you require a custom design, contact our technical sales team to start “Build Your Own Lens” process.



For more information about hyp design, please feel free to contact us!

Advanced Fabrication Technology

Advanced Fabrication Technology



Hyperion Optics has over a decade of experience in optical and mechanical design, manufacturing, and optical assembly. With the rapid growth in the photonics market and an increasing demand for precision and accuracy, we have continued to upgrade our advanced fabrication technology in order to better serve the optics community.



We have expanded our fabrication capabilities through employing skilled optics technicians and investing in advanced devices and equipment. A few examples include the Optotech® machining and polishing station and the Ametek® aspherical machining device. On the metrology side, we are equipped with the latest Zygo Verifire™ interferometer and MTF testing station. From manufacturing to inspection, we believe that our value lies in the reliability of our technology and the talents of our people.



Our optical and engineering team consists of 15 optical experts who have expertise and familiarity with high-end applications. Our engineers’ specialty and understanding of the optical system can ensure that your needs would be fully understood and met. We are proud of our professional customer service that offers full support throughout the products’ life cycle.



Our production team has been serving our loyal customers from R&D to production projects by consistently delivering excellent quality parts. Through projects large and small, our team has grown mature and vigilant in averting potential production risks, which resulted in significant cost-savings for our customers. Our engineers invest a considerable amount of time in initial consultation to go over every optical specification. This process helps ensure that the tolerance distribution is appropriate for the given application, and can avoid unnecessary yield loss and overly-tight specification that drives up the production cost.



Over the past 12 years, Hyperion has built a rich portfolio of successful client stories. In this growing process, we have developed a bullet-proof process that guarantees our clients in reaching their optical goals. During quotation and prior to production, our team conducts careful review and specs examination to avoid production pitfalls. In many cases, our suggestions have successfully optimized the optical design for manufacturability and cost-savings.



For instance, it is our standard procedure to simulate the aspherical equation during the RFQ process to ensure that there are the design is manufacturable. This step also helps prevent potential failure prior to actual production. For aspherical designs that we are not confident about, we offer free trial on low-cost material for feasibility testing to understand and study the production challenge.



Besides improving our fabrication technologies, we continue to uphold and take pride in our conventional methodology that involves high-speed polishers and machinery. With our outstanding production staff and metrology procedure, we are confident to deliver high-quality precision optics for you and your institutions.



For more information about optical design manufacturing, please feel free to contact us!

Basic Tips about Aspherical Lenses

The curvature of the lens of this kind of lenses is better. It maintains the good performance of aberration correction to obtain the required performance. The use of aspheric lenses brings outstanding sharpness and higher resolution, while miniaturization of lenses is possible.





Summary:

Aspherical lens is a constant curvature from the center of the lens to the edge, but the curvature of the lens varies continuously from the center to the edge for aspherical lenses. In photographic lenses, many aberrations must be corrected in order to ensure optical performance. If only the aspherical lens is used to correct the lens, the technical requirements of the lens require a combination of lenses. For special advanced lenses, only spherical lenses sometimes fail to correct aberrations to the level of user satisfaction. Calculation formulas in optical design:



Calculation formulas in optical design

Technical principle:

The radius of curvature of an aspherical lens varies with the central axis to improve optical quality, reduce optical elements, and reduce design costs. Aspheric lenses have unique advantages over spherical lenses, so they are widely used in optical instruments, images and optoelectronics industries, such as digital cameras, vehicle lenses, and high-end micro instruments.



Comparative advantage:

A. aberration calibration

The most prominent advantage of aspheric lenses in replacing spherical lenses is that they can correct the spherical aberration induced by the spherical lens in the collimation and focusing system. By adjusting the surface constant and the aspheric coefficient, the aspheric lens can eliminate spherical aberration to the maximum extent. Aspherical lenses (rays converging to the same point, providing optical qualities) essentially eliminate spherical aberrations produced by spherical lenses (which converge to different points, leading to blurred imaging).

Three spherical lenses are used to increase the effective focal length for the elimination of spherical aberration. However, an aspheric lens (high numerical aperture, short focal length) can be implemented, and the system design is simplified and the transmittance of the light is provided.



B. system advantage

The aspheric lens simplifies the involved elements adopted by the optical engineers in order to improve the optical quality. And improves the stability of the system. For example, in the zoom system, typically 10 or more lenses were used (additional: high mechanical tolerance, high additional assembly procedures, improve the anti-reflective coating), but 1 or 2 pieces of aspheric lens can realize optical quality similar or better, so as to reduce the system size, improve the cost rate, reduce the comprehensive cost system.



Molding process:

A. precision glass molding

Precision glass molding is the process of heating glass materials to high temperatures and becoming plastic. They are formed by spherical molds and gradually cooled to room temperature. At present, precision glass molding is not suitable for aspheric lenses with a diameter greater than 10mm. But new tools, optical glasses, and measurement processes are driving the technology. Precision glass molding, although the cost is high in the design stage (high precision mold development), but after the molding, the production of high-quality products will average the cost of development and the price will become acceptable, especially suitable for the needs of mass production occasions.



B. precision polishing molding

Grinding and polishing are generally applied to the production of monolithic aspheric lenses at one time. With the improvement of technology, the accuracy of lapping and polishing is higher and higher. Most notably, accurate polishing is controlled by the computer and automatically adjusted to optimize parameters. If higher quality polishing is required, magneto-rheological finishing will be adopted. Compared with standard polishing, magneto-rheological finishing has higher performance and shorter time. Precision polishing molding requires specialized equipment and it is currently the primary choice for sample making and small batch testing.



C. mixing molding

The spherical surface of an aspherical lens is cast on by using a spherical molding, and a layer of high polymer aspheric surface is cured by ultraviolet light and cover on it. In hybrid forming, the achromatic spherical lens is used as the base, and the surface is cast with a layer of aspheric surface to eliminate chromatic aberration and spherical aberration at the same time. Fig. 7 is a manufacturing process of a mixed forming aspherical lens. The hybrid aspherical lens is suitable for occasions where additional characteristics are required (simultaneous elimination of chromatic aberration and spherical aberration) and mass production.



D. injection molding

In addition to glass aspheric lenses, there are plastic aspheric lenses. Plastic molding is the injection of molten plastic into an aspherical mold. Compared with glass, the thermal stability and compressive resistance of plastics are poor, and special treatment is needed to obtain similar aspherical lenses. However, the most important feature of the plastic aspheric lens is its low cost, light weight, and easy molding. It is widely used in such fields as moderate optical quality, insensitive thermal stability, and little pressure resistance.



Selection basis:

Various types of aspheric lenses have their own relative advantages. Therefore, for different applications, it is important to choose the right product. Major considerations include batch size, quality, and cost.

A. precision glass molding aspheric lens has the characteristics of mass production and high thermal stability, suitable for a large batch, high quality, and high thermal stability.

B .precision polishing molding aspheric lens has the characteristics of short period sample preparation and no die need, it is suitable for sample production and small batch sample occasions

C. mixed molding aspheric lens with the features a simultaneous calibration of spherical aberration and chromatic aberration features, suitable for wide spectrum, large volume, high quality.

D. plastic aspheric lens has the characteristics of low cost and light weight, suitable for large quantity, the low requirement on quality, moderate thermal stability.

When aspheric lenses are required (without standard products or inventory products), development costs, sample costs, batch prices, delivery cycles and other factors should be taken into account.



For more information about optical design manufacturing and aspheric lenses price, please feel free to contact us!

Why Use Achromatic Lens?

Achromatic lens is a kind of lens which is made up of two kinds of optical components: positive low refractive index and negative high refractive index. Compared with a single lens containing only a single glass, the dual-lens design can provide additional design freedom for users and further optimize the performance of the lens. Therefore, achromatic lens has more advantages than single lens with equal diameter and focal length.



Achromatic lens has various configurations, among which positive achromatic lens, negative achromatic lens, three-in-one acromatic lens and non-spherical achromatic lens are common. It is important to note that achromatic lenses can be bichromic (dual elements) or triad (three elements), and the number of elements is independent of the number of light corrected by the lens. In other words, double or triple achromatic lenses can correct both red and blue light in the visible range.



The achromatic lens is far superior to the simple multi-color "white light" imaging lens. The two components that make up an achromatic lens (literally "uncolored lens") are combined to correct the inherent chromatic aberration of glass. The achromatic lens is very cost-effective in multi-color illumination and imaging because it can eliminate the difficult chromatic aberration.



Since the axial performance of achromatic lens is not degraded by using larger aperture, it is unnecessary to "reduce" the volume of optical system. "Reducing" aperture refers to reducing the aperture of a lens, such as through a pinhole or aperture, to improve the overall performance of the lens. By making full use of the whole aperture, achromatic lens and achromatic lens system can achieve faster speed, higher performance and more powerful functions than the equivalent system using single lens.



For more information about hyp design, please feel free to contact us!

The Design Principles of Infrared Optical System

The infrared optical system refers to the system that works in the infrared band of the optical wave, which is the optical system that receives or sends infrared light waves. In general, the infrared optical system is a category of optical system, which is not different from other optical systems in light energy reception, transmission, imaging and other optical concepts. However, due to the infrared optical system working wavelength infrared region and the photoelectric detector as the receiving element, so it has its own characteristics, different from the general optical system.





The wavelength range of infrared optical system tends to be wide, and there are few kinds of infrared transmission materials available at present. Aberration correction, especially chromatic aberration, is very difficult. Therefore, the infrared optical system adopts the non-spherical reflection system or refraction - reflection system in the structure. With the continuous expansion of infrared application scope and the continuous development of infrared thermal imaging technology, the projective objective cannot meet the requirements of large field and large aperture. Therefore, in recent years, high refractive index and low dispersion crystal materials have been widely used for various refractive lens. Infrared optical system is an infrared detector. In order to improve the detection sensitivity, increase the signal-to-noise ratio, the system USES the package live immersion lens, field lens and light cones of secondary condensing system (also known as detector optical system), and a light engine scanning with all kinds of optical scanner. From the principle of design, most infrared optical systems are designed using geometrical optics.



The characteristics of infrared optical system



Because of the unique properties of infrared radiation, compared with the general optical system, especially the visual and photographic system, the infrared optical system have different characteristics.



1) the radiation band of infrared radiation source is located in the invisible zone above 1 um. Ordinary optical glass is not transparent to 2.5 um. In all materials that are possible to penetrate infrared wavelengths, only a few materials have the necessary mechanical properties and can be given a certain size. This greatly restricts the application of lens system in the design of infrared optical system, which makes the reflection type and the reflex optical system occupy a more important position.



2) nearly all infrared systems are optoelectronic systems. Its receiver is not a person's sleep or a photographic plate, but a variety of optoelectronic devices. Therefore, the performance and quality of the corresponding optical system should be based on the sensitivity and signal-to-noise ratio of the optical system, rather than the resolution of the optical system. This is because the resolution tends to be limited by the size of the photoelectric device, thus reducing the requirements for the optical system accordingly.



3) small field and large aperture. In the case of the application unit detector, because the infrared detector has smaller reception area, the optical field of the general infrared optical system is not very large, and the outer aberration of the axis can be considered less.

Because the reflection system has no color difference, in most cases, it is possible for such a reflection system to eliminate the ball and satisfy the sine condition. At the same time, the requirements of such system objects are not too high, and they require high sensitivity. Therefore, most of the optical systems with large relative aperture, namely small F, are adopted. In general, due to the limitation of processing, the number of F is 2-3.



4) the application of various scanners has become more and more, in order to achieve the goal of scanning the space target by tracking the heating of the imaging and thermal imaging technologies. The scanner can be placed before the imaging system, which has a large size and high power consumption, but has minimal impact on the image quality of the optical system. In addition, the optical system with this scanning system requires the rear focal length of the principal and some special requirements for the it.



5) the wavelength of the infrared band is about 5-20 times that of visible light. In this way, the temperature of the thermal imaging system is lower because of the diffraction limit, which means that the thermal imaging system with high resolution must have a large aperture. This makes the system heavy and costly.



For more information about optical assembly manufacturing, please feel free to contact us!
